In group LOTO (Lockout-Tagout) operations, the group lock box (Group Lock Box) plays the role of the “key center”: only one isolation lock is hung at the energy isolation point of the equipment, and the key of this lock is placed in the lock box. All the workers involved in the operation then attach their own personal locks to the box. As long as there is any personal lock hanging on the box, the key of the isolation lock cannot be taken out, and the energy cannot be restored.
Portable and wall-mounted lock boxes are completely the same in this regard – they are both physical carriers of the safety mechanism “energy can only be restored with unanimous consent”.
The real difference lies in how they integrate into your workflow. The following breaks down the differences between these two forms from five dimensions.
Difference One: Installation Method – Mobile vs. Fixed
This is the most intuitive and also the one that affects everything.
The wall-mounted lock box is “fixed” in place. It is secured to the wall of the workshop, control room, or power distribution room with screws, and it rarely moves after installation. Its presence itself is a commitment – “This is the key center for this area, all isolation keys are managed here”. Workers do not need to look for it because it is always there.

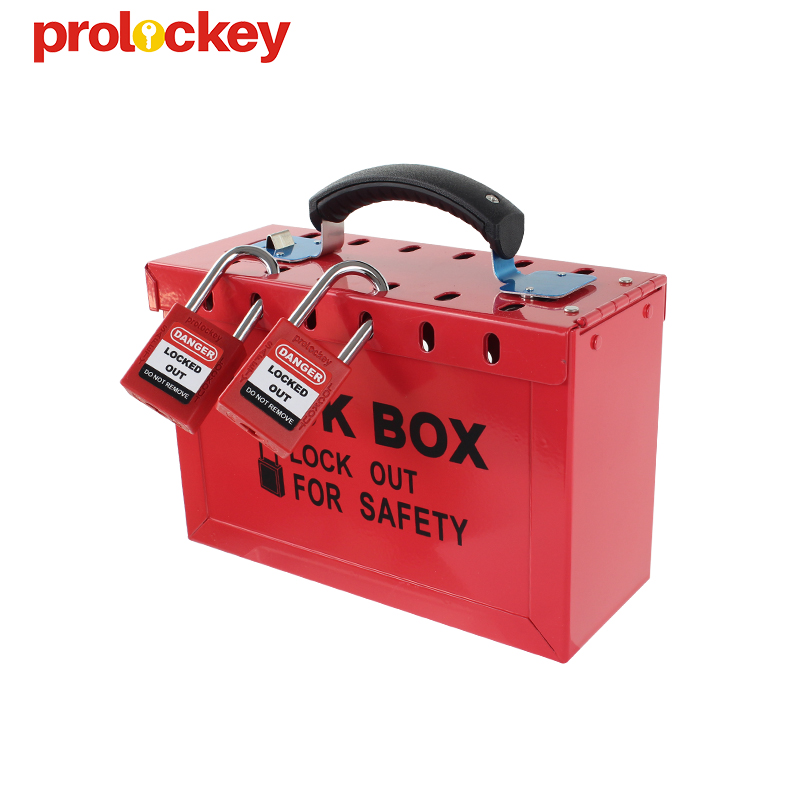

The portable lock box is “attached to the leg”. It has a handle and is designed to be carried around. The box is moved to the location where the operation is carried out; when the task is completed, the box follows the team. Its existence mode is “I am on site”, not “I am on the wall”.
This difference seems to be just the installation form, but it actually determines all the subsequent differences: location determines who can use it conveniently, how large the capacity can be, how high the risk of loss is, and how the management responsibility is distributed.
Difference Two: Capacity Scale – Difference of Several Dozen Locks
The wall-mounted lock box has an absolute advantage in capacity. Because it is fixed to the wall, it is not restricted by transportation, and the box can be made very large. Common specifications start from 12 lock positions, and large ones can accommodate dozens or even hundreds of personal locks, and can also manage multiple isolation points and the isolation keys of multiple teams. During the annual major overhaul of large equipment, a wall of lock boxes may hold the keys for the entire system.
The portable lock box is inherently limited. A box that needs to be carried away by one hand has a volume and weight limit. Common specifications can accommodate 10 to 40 personal locks, which is fine for small-scale maintenance tasks, but when facing large teams of dozens of people and large-scale operations with multiple isolation points, it will be inadequate – either add more boxes or switch to wall-mounted.
In a nutshell: Wall-mounted is a warehouse, and portable is a backpack.
Difference Three: Visibility and Status Management
The portable lock box usually uses transparent or semi-transparent boxes (mostly polycarbonate material), which is a deliberate design: Workers can see the status of the isolation lock keys through the box – if the key is still there, the isolation is still in place; combined with the row of personal locks hanging outside the box, it is immediately clear “Who hasn’t completed the task”. The transparent box itself is a continuous safety reminder.
The wall-mounted lock box relies more on “institutionalized visibility”. The box is mostly made of steel or opaque engineering plastic, and it cannot be seen inside, but because it is fixed in place, the manager can establish a fixed identification system beside the box: isolation point list, work permit number, nameplate of the person locking, key registration form. Status management is not through “seeing in”, but through “posting out and recording”.
Each logic has its own strengths: Portable is good at being immediate and intuitive, while Wall-mounted is good at being standardized and traceable. In places with high safety requirements, they often rely more on the latter’s management method that has records and traceability.
