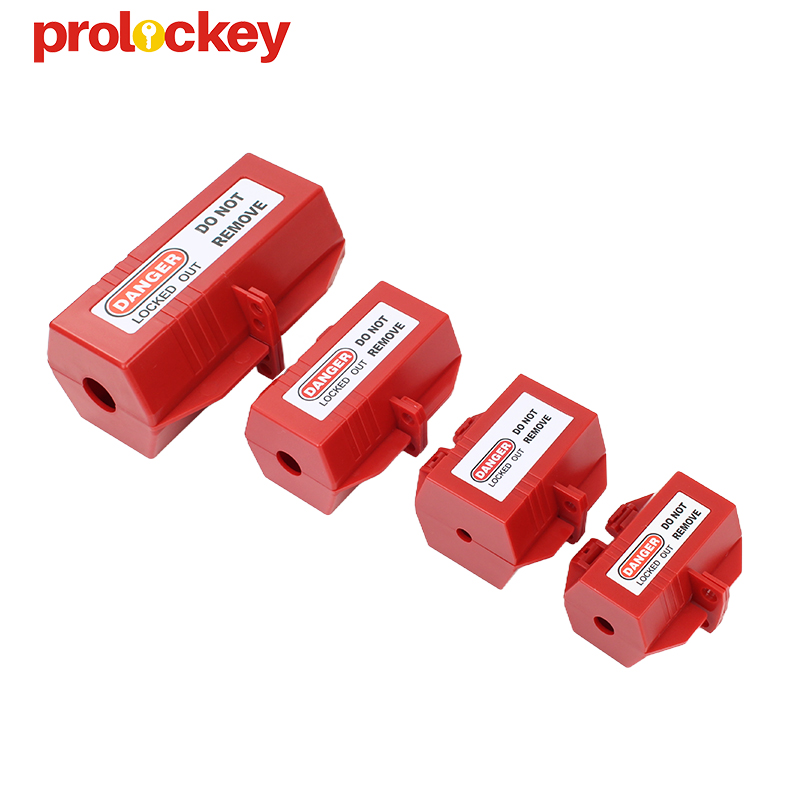

What a plug lockout does and what dimensions matter for fit

The function and applicable dimensions of the latch lock
In the LOTO hardware family, the latch lock is a small accessory that is easily “remembered and then forgotten” – unlike the safety latch which directly locks the energy, or the valve lock which completely encloses the handwheel, it passes a pin through the isolation point to turn a “single point” into a “locking station” that can hold multiple locks. It is not large in size, but it is often the key to the success of the entire isolation operation. And what determines its usability is often not the brand or price, but a series of easily overlooked dimensions.

What exactly does the latch lock do?
First, clarify its role. The basic form of the latch lock is a metal piece with a pin (or hook pin, bolt) and several lock holes. When used, the pin is inserted through the locking hole on the circuit breaker handle, the operating hole of the disconnect switch, or a specially reserved locking point, and the latch lock is fixed to the isolation device; then, each operator hangs their personal safety lock into the lock hole of the latch lock. In this way, an isolation point that could only hold one lock has become a locking station that can be locked by multiple people simultaneously.

Its functions can be summarized into three points.

First, expansion. Many isolation devices have only one locking hole, which is only enough to hold one lock. During group operations, multiple people need to lock the same equipment separately, and the latch lock is the “distributor” – expanding a single hole into multiple lock positions, allowing the “one person, one lock” rule to be implemented on the hardware.

Second, fixation and anti-loosening. The action of the pin passing through the isolation point itself is a physical fixation process. After the latch lock is fixed, the handle, operating lever, or cover of the isolation device is restricted in its movement range and cannot be pushed back to the operating position. This is what distinguishes it from a simple latch lock: the latch lock is not just “a frame for the latch”, it is also a mechanical barrier that restricts the movement of the isolation device.

Third, forming visual accountability. Each personal lock on the latch lock corresponds to one person, with names, numbers, and colors clearly visible. Who is still working and whether the energy can be restored can be seen at a glance on the latch lock.

One of the dimensions: the matching of the pin diameter and the isolation point hole diameter
Whether the latch lock can be used, the first thing to consider is whether the diameter of the pin matches the target hole diameter, which is the basis for all adaptability.

If the pin is too thin, it will wobble in the hole after being inserted, and the latch lock will not be fixed firmly. During the operation, if the equipment vibrates, the latch lock may shift or even come out, appearing to be locked but actually losing its restrictive effect. If the pin is too thick, it simply cannot pass through the hole of the isolation point, even with the most advanced tools, it cannot be used. Therefore, the first step in selection is always to measure the hole diameter of the target isolation point with a caliper and then check the diameter of the pin of the latch lock.

What is more troublesome than the hole diameter itself is “the shape and position of the hole”. Some circuit breaker handles have long round holes instead of round holes, and some holes are located on the inner side with limited space around, even if the diameter is suitable, the pin may not be able to pass through due to installation angle restrictions. Such situations require a latch lock with an adjustable pin or a rotatable structure to make up for the tricky space.

Dimension two: the length of the pin and the insertion depth
After the diameter is matched, it also needs to be checked if the length is sufficient and if it will be too long.

If the pin is too short, it cannot penetrate the thickness of the isolation component, and the latch lock is suspended on the surface, and it may fall when pulled. If the pin is too long, it will hit the rear structure, block adjacent components, or cannot turn in the narrow distribution cabinet. The appropriate length is just enough to pass through the isolation point and leave enough fixation margin, while not interfering with the surrounding areas.

This item is the easiest to be overlooked during selection because it cannot be directly determined by measuring the hole with a caliper and then checking the diameter. It needs to be judged together with “whether the hand can be inserted, whether there is obstruction around, and whether the latch lock will hit the cabinet door after being installed”. An old electrician often said something very sensible: The key to a lock is not its size, but whether it can be turned at the designated position.

The third dimension: The diameter and number of holes for the lock latch
After the lock latch is installed, a lock needs to be attached. This is where the size of the lock latch holes comes into play.

The diameter determines what kind of lock can be attached. If the lock latch hole is too small, a thicker safety lock designed for security purposes will not fit – and the LOTO safety lock is actually thicker than the locks used for household purposes. This contradiction is quite common in actual situations: Purchased a cheap lock latch, but the factory’s safety locks all couldn’t fit into the holes, a waste of effort. When choosing, be sure to check the diameter of the lock latch holes against the actual diameter of the lock rods used in the site. Generally, it is necessary to leave some margin for the lock rod to pass smoothly to avoid being jammed or making it difficult to unlock.

The number of holes determines how many people can be locked in. 4 holes are suitable for small-scale operations, 6 holes are the industry standard, and 12 or 24 holes are used for large-scale maintenance or system-level isolation. The choice of hole number is based on the maximum number of people who can be locked at the same time. It is better to leave some margin than to be exactly jammed – if the number of people increases temporarily, the extra hole positions are redundant safety space.

The fourth dimension: Claw distance, material thickness and overall structure
There are also several “hidden dimensions” that also affect compatibility.

Claw distance, that is, the width of the opening between the two claws of the lock latch, must match the thickness of the isolation piece. If the opening is too large, it won’t grip tightly; if it is too small, it won’t fit. For isolation points like valve handles or baffles, the adaptability of the claw distance is even more crucial than the latch itself.

Material thickness relates to strength. The lock latch is subjected to mechanical tension, and cheap products with too thin materials are prone to deformation under tension or impact. Once deformed, they may be pulled open. The appropriate thickness is not necessarily the thicker the better; it is within the premise of ensuring strength, without adding unnecessary weight and volume.

The overall structure also includes anti-pullout design – good lock latches have a retarding structure in the direction of the pull-out of the plug, preventing someone from using brute force to push the plug out. This feature has no dimension parameters, but it determines success or failure just like the dimensions do.
