The Function of Circuit Breaker Locking Devices and the Importance of Circuit Breaker Design
In the protection chain of the power system, the circuit breaker is a very special entity: it is both the “switch” for daily operation and the “checkpoint” for maintenance isolation. These two identities combined give rise to a specialized device – the circuit breaker locking device. Behind it, there is another topic that is more easily overlooked: the design of the circuit breaker itself determines the reliability of isolation.
Let’s clarify: What does the circuit breaker locking device do?

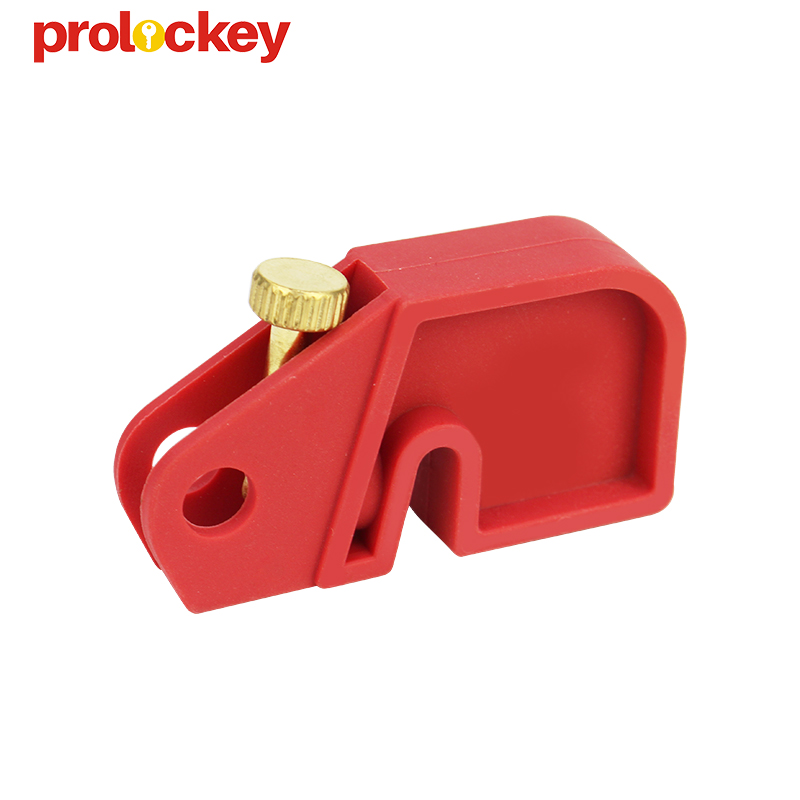

The circuit breaker locking device, also known as the circuit breaker lock, is a set of physical locking tools attached to the handle or operating mechanism of the circuit breaker. Its function can be understood by breaking it down into four levels.
The first level, and the most direct: fix the handle in the open position. Once the lock engages the handle, no one can manually move the handle to the close position. This is the most basic meaning of “physical isolation” – not through institutional constraints, but through structural obstruction.
The second level: prevent misoperation. One of the most dangerous scenarios in industrial settings is someone unknowingly closing a circuit that is under maintenance. It could be an operator who accidentally turns the handle, or someone who wants to restore their own equipment but presses the wrong circuit. The locking device combined with warning signs makes “unintentional closing” physically impossible.
The third level: block remote and automatic closing. Modern circuit breakers often have electric operating mechanisms that support remote closing from the control room, from the DCS system, or even remotely according to automatic logic. The handle locking device, combined with the isolation of the control circuit, blocks this “invisible hand”. Locking the handle without disconnecting the control power is a common cause of remote closing accidents.
The fourth level: make responsibility visible. A lock with a nameplate and warning label clearly tells everyone: this circuit is being worked on, this lock belongs to whom, and when it can be unlocked. The locking device is thus not just a tool, but the physical carrier of the iron law in the LOTO procedure of “who locks, who unlocks”.
On a deeper level: Circuit breaker design determines the ceiling of locking
No matter how good the locking device is, it must be attached to the design of the circuit breaker itself. A circuit breaker that is inherently not conducive to locking and verification will reduce the effectiveness of even the most standard locking procedures. This is where the importance of circuit breaker design lies.
Firstly, lockability. During the design and manufacturing stages of the circuit breaker, reliable locking interfaces should be reserved – the handle position can be securely installed with a lock, and once locked, there is no shaking or travel margin. Multiple locks can be simultaneously hung to support group operations. International mainstream circuit breaker standards all include “lockable” as a design requirement, and this is the reason: the locking capability should be designed in the factory, not improvised with wire and tape at the site.
Secondly, the reliability of status indication. The open position indication must be clear, unambiguous, and mechanically linked to the actual position of the contacts. Well-designed circuit breakers make “the handle showing OFF” highly consistent with “the contacts are actually open”; while poorly designed products may have the risk of indication and actual disconnection being out of sync, such as when the contacts are welded and the handle still shows open. For such equipment, on-site verification using an electric test is necessary to fill the design gap – but ultimately, this is a debt left by the design.
Thirdly, the visibility of isolation. In the high-voltage field, the design concept of “obvious disconnect points” is widely adopted: when the isolating switch is opened, a visible air gap is left. This “visible disconnection” provides the most direct confirmation basis for operators. Although low-voltage molded-case circuit breakers cannot be visually checked for contacts, good design provides similar visible isolation through drawer-type or separable structures. The closer the design is to “visible”, the more confident the verification is.
Finally, the ability to resist misoperation. An excellent circuit breaker design will set multiple barriers on the closing path: key interlock, five-prevention locking, operation permission management, making the closing action impossible to be completed easily or unintentionally. The locking device is an external barrier, while the inherent locking logic within the design is an inherent barrier. The combination of these two is the complete protection.
When combined, they form a complete electrical isolation.
When looking at the two aspects together, a clear logic emerges: The locking device is a program-level execution tool, while the circuit breaker design is the inherent foundation at the hardware level. The design leaves good interfaces, allowing the locking device to be installed and locked securely; the state indication is done solidly, making the verification after locking worry-free; the locking logic is well-designed, reducing the space for human error to the minimum.
Conversely, if a factory frequently complains about “unable to lock”, “unclear indications”, and “always being mistakenly closed”, the problem is most likely not with the locking devices, but rather the equipment selection did not consider “favorable safety isolation” as a design consideration. Asking one more question during the equipment procurement stage, “Is this circuit breaker easy to lock and confirm?”, is more valuable than adding numerous procedural documents after an accident.
