Portable vs Wall-Mounted Group Lockout Boxes: Which Fits Your Workflow?

The Role of Lockout‑Boxes in Group Lockout

For multi‑worker LOTO (Lockout‑Tagout) operations, when isolation points are scattered and many personnel are involved, attaching individual padlocks directly to every isolation point becomes inefficient and disorganised. The standard solution in this scenario is to deploy a Group Lock Box. Only one “isolation padlock” is fitted on the equipment’s energy‑isolation point, and the key to this lock is placed inside the group lock box. Every worker taking part in the job then secures their personal safety padlock onto the lock box.

In this workflow, the lock box acts as the key hub for the entire isolation system. As long as any personal padlock remains fastened to the box, the key to the isolation lock cannot be retrieved, and energy cannot be restored to the equipment. The key becomes accessible only once all workers have removed their individual locks.

Portable Group Lock Box: Mobile Lockout for Field Work

The design principle of a portable group lock box is: where the job goes, the lock box goes.

Typical features include a compact body, built‑in carry handle, capacity for 10‑40 personal padlocks, and a transparent or translucent polycarbonate shell, allowing instant visual inspection of the keys stored inside. Premium models are equipped with a key‑retention mechanism: once keys are placed inside and the box is locked, they cannot be removed until every padlock has been unlocked.

Ideal Workflow

Suited for dispersed equipment and mobile maintenance crews. For example, a maintenance team may work in a pump house one day, a compressor zone the next, and a tank farm on the third. Before each task, the coordinator completes equipment isolation, places the isolation‑lock key inside the portable box, carries it to the work site, and each worker attaches their own padlock. When work finishes and all locks are removed, the box can be transported to the next job location.

Advantages of Portable Lock Boxes

1. On‑site presence: Workers can lock and unlock right beside their work area without travelling long distances.
2. Transparent casing provides continuous visual safety awareness so personnel can quickly see which locks are still engaged.
3. High mobility, perfect for contractors, multi‑site inspections and emergency repairs where work locations change frequently.

Limitations

• The unit must be carried by personnel, creating a risk of loss. Losing the box together with isolation‑lock keys constitutes a serious safety incident.
• When left on‑site, it may suffer impact damage, become obscured or be moved by unauthorised people.
• Padlock capacity is generally limited, making it unsuitable for very large work teams.

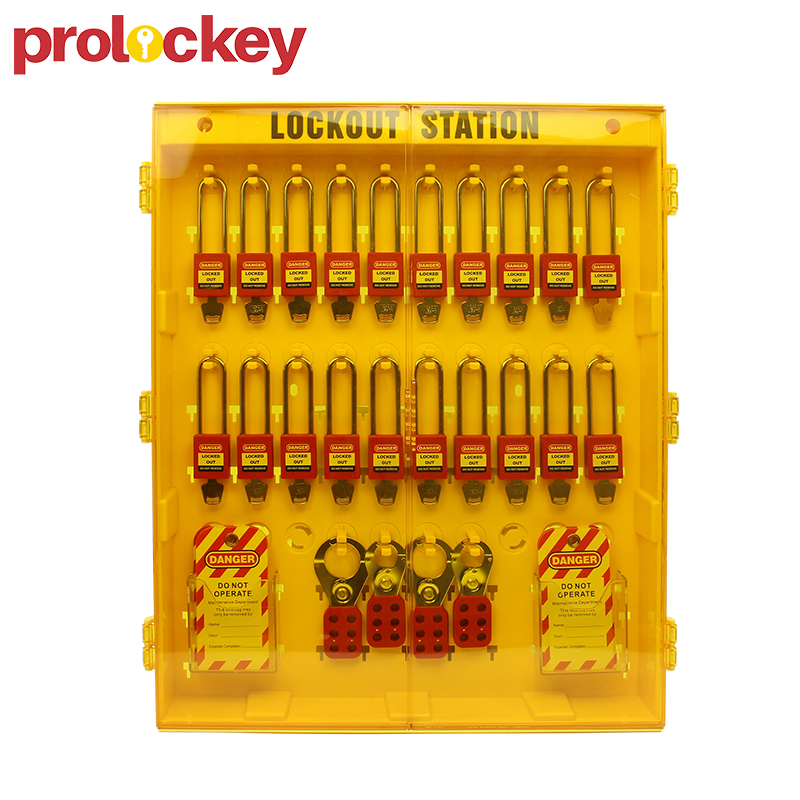

Wall‑Mounted Group Lock Box: Fixed‑Location Lockout Station

The design principle of a wall‑mounted group lock box is: the station stays fixed while workers come to the keys.

It is permanently or semi‑permanently installed on walls inside workshops, control rooms or electrical rooms. These boxes are normally larger‑sized, supporting between 12 and over 100 padlock positions. Housings are usually manufactured from steel or heavy‑duty engineering plastic; some versions include viewing windows and dedicated internal storage compartments for safety padlocks. Two common applications:

1. Central key repository: Keys from all isolation‑point locks are kept inside, giving plant‑wide visibility over all energy‑isolation statuses.
2. Padlock issuing station: Personal safety locks are stored in built‑in compartments and collected by workers before starting maintenance, delivering highly formalised lockout management.

Ideal Workflow

Best‑suited for fixed equipment and recurring maintenance routines. For instance, a chemical‑plant reaction workshop carrying out scheduled monthly overhauls, with a consistent set of valves and circuit breakers requiring isolation. A wall‑mounted lock box installed near the workshop entrance holds all isolation keys, and workers come to the station to apply their locks, creating a repeatable, standardised procedure.

Advantages of Wall‑Mounted Lock Boxes

1. Permanent, well‑known location eliminates confusion over where to complete lockout procedures.
2. Large capacity supports key administration for multiple isolation points and work crews simultaneously.
3. Fixed installation reduces risks of loss or unintended movement compared to portable units; additional physical protection can be fitted.
4. Space for custom labelling, such as isolation‑point checklists or work‑permit numbers, creating a dedicated safety management station.

Limitations

• No mobility. Workers must travel long distances if the lock‑box station is far away from their isolation point.
• Cannot be used for cross‑site operations.
• If plant layout is modified, the wall‑mounted box may no longer be positioned appropriately.

Four Decision‑Making Questions to Select the Right Lock‑Box Type

You can make a clear selection by answering the following four questions:

1. Are your work locations fixed? Wall‑mounted boxes are ideal for recurring maintenance on permanent equipment. Portable lock boxes are the preferred solution for crews moving frequently across different zones or facilities.
2. How many personnel and isolation points are involved? Wall‑mounted high‑capacity units are recommended for large teams of dozens of workers and more than ten isolation points. Portable boxes are fully sufficient for small crews of under ten people with only a few isolation locations.
3. Who takes responsibility for key management? Wall‑mounted systems assign key‑management duties to a fixed on‑site role, such as a control‑room operator. Portable boxes place responsibility on the mobile job coordinator. Select whichever responsibility model fits your organisational workflow.
4. Does the site environment permit installation? Wall‑mounted units require a suitable wall mounting location. Material compliance must be verified for hazardous explosive‑classified areas, and weatherproofing is required for outdoor installations. If no compliant mounting point is available on‑site, a portable lock‑box solution will be more practical.
