Padlock Lockout: How to Install and Remove It Safely

Among all lockout/tagout hardware, the safety padlock is the smallest, most ordinary, and most easily underestimated item. It is inexpensive and simple in construction — it looks like a matter of “slip it on, snap it shut, done.” Yet this most basic tool carries the final link in the entire energy control chain. If it is not fully locked, or if it is removed by the wrong person at the wrong moment, every procedural safeguard built before it collapses in that same instant.

Using a padlock properly is not really about whether it locks. It is about installing it correctly, removing it correctly, and doing both at the right time.

Before Installation: Three Things First

Do not rush to hang the padlock on the equipment. Three things have to be finished first.

First, notify affected employees. Shutting down and locking out is never a one-person matter. The operator at the affected position, adjacent workstations, and the shift leader all need to know in advance that a specific piece of equipment is going down for maintenance. This is an explicit regulatory requirement, and it is the first line of defense against someone else operating the machine by mistake.

Second, identify the real isolation point. The padlock goes on the point that actually cuts the energy — not on the point that merely looks like it. A local start/stop button is not an isolation point. The upstream circuit breaker, the main valve, the power plug — those are. Whenever this judgment is in question, verify it on site by tracing the energy path: where does this circuit come from, is there a bypass, how many devices sit downstream.

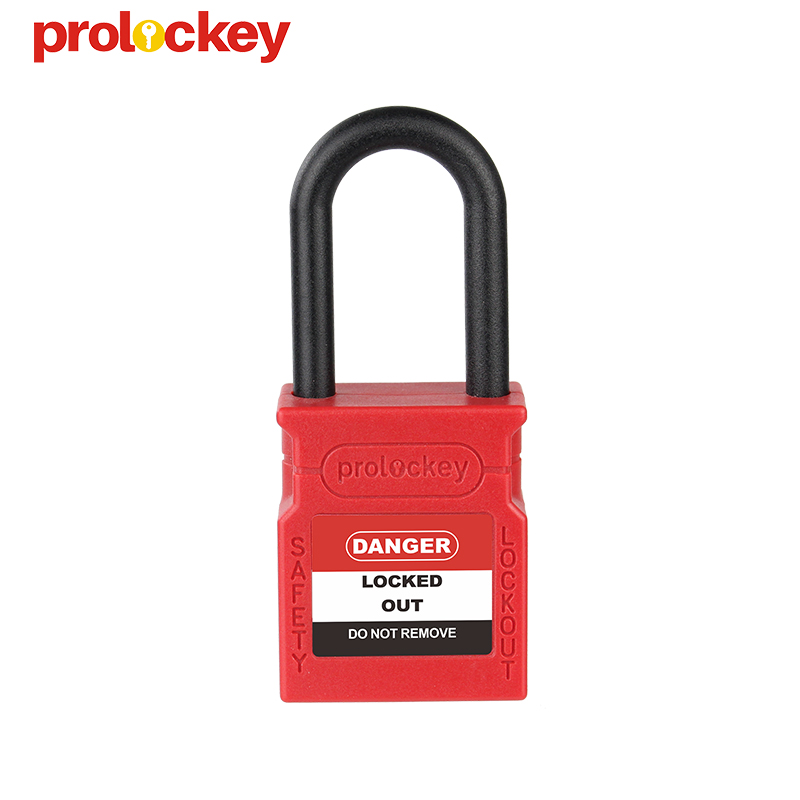

Third, choose the right lock. Use an insulating body (modified nylon) in electrical environments, stainless steel in corrosive environments, and spark-proof aluminum in flammable or explosive atmospheres. The shackle material and length must be able to pass through the hole at the isolation point, and the shackle diameter must be accommodated by the hasp or isolation point. Choose wrong and either it will not fit, or it will fit and still be a false lock.

Installation: Five Steps

With preparation complete, installation proper follows five steps.

Step one, disconnect and operate the isolation device. Shut the machine down through the normal procedure, then open the circuit breaker, turn the handwheel valve fully closed, or pull the plug from the socket. This is the action that actually cuts the energy. The padlock itself does not cut anything — it only holds in place the state of “already cut.”

Step two, pass the shackle through the isolation point. Straight through the locking hole in the breaker handle, straight through a hole in the hasp, or onto a dedicated lockout device. One detail matters: the shackle must pass completely through and seat in the correct position, not simply rest on top. Some isolation points require a lockout attachment first — a circuit breaker lockout, a valve lockout — with the padlock applied to the attachment afterward. That order cannot be reversed.

Step three, snap the shackle closed and confirm it is truly locked. Press the body down until it clicks, then pull back on the body to confirm the shackle has fully engaged. That “pull-back confirmation” looks redundant, but it is the key motion for catching a false lock — if the shackle has not fully seated, the pull-back exposes it immediately.

Step four, remove the key, and never let it leave your person. Safety padlocks commonly use a key-retaining design: the key cannot be withdrawn while the lock is open and can only be removed once it is locked. This physically guarantees that while the lock is applied, the key is on you and not in the lock. After removal, keep the key on your person or in personal lock custody. Never leave it dangling in the lock or toss it into a toolbox.

Step five, attach the warning tag. The lock handles physical blocking; the tag explains the situation. Write the worker’s name, the nature of the work, the time of lockout, and contact information. Lock and tag together form one complete unit.

After Installation: Two Verifications, Neither Optional

The lock is on, but the procedure is not finished. Two verifications follow.

The first verifies the lock itself. Tug it and shake it by hand to confirm the shackle is fully engaged, the body will not come off, and the hasp is firmly fixed. This verifies the hardware.

The second verifies zero energy. Measure at the work point with a proper voltage tester, instrument, or pressure gauge to confirm the equipment genuinely carries no energy — zero voltage in the electrical circuit, zero pressure in the line, no potential energy in moving parts. This is the closing action of the entire LOTO procedure and the most important step of all. Only after this verification passes can you reach in and start work.

Removal: Six Steps

Work is done and it is time to remove the lock. The rules for removal are stricter than those for installation, because this is the moment energy is about to return.

Step one, confirm all work is complete. The maintenance task is finished, replaced parts are back in place, temporary wiring is removed.

Step two, inspect the work area. Recover and count tools, clear leftover materials, remove waste, take down temporary supports and barriers. The principle is “leave nothing behind” — anything left inside the equipment can become a projectile the instant it starts.

Step three, count personnel and clear the area. Work through three levels: inside the equipment, the danger zone, and the surrounding boundary, including the easily overlooked hidden spots — beneath the conveyor, inside the silo, within the piping, on the maintenance platform, down in the pit. The principle is “leave no one behind.”

Step four, check the equipment condition. All safety guards are back in place, controls are at neutral or stop, components are fully installed, temporary grounding leads are removed, and residual energy has been dealt with.

Step five, notify everyone affected. The lock is coming off and the equipment is about to be restored. Every relevant person must receive that information and confirm they understand it.

Step six, the worker removes their own lock. This is the iron rule — whoever applied it removes it. Not the shift leader, not a coworker, not the supervisor. Only the person who applied it. After removal, take the key, then restore energy, verify startup, and complete the handover.

Four Iron Rules for Removal

One, whoever locks, unlocks. This is the most fundamental rule of the LOTO system. Having someone else remove it, even out of goodwill, strips the worker of control over their own safety.

Two, the key never leaves your person. From the moment the lock is applied until it is removed, the key stays with you. A key out of your possession is a life handed to someone else.

Three, if the person is not present, follow the emergency procedure — not “a helping hand.” If the worker genuinely cannot be present — absence, an unexpected situation — removal must be carried out by a person designated by the employer under the written emergency removal procedure: confirm the absence, make every reasonable effort to contact them, independently verify the zero energy state, remove only after authorization, and document the entire process in detail. A coworker “just taking it off as a favor” is a violation, not a favor.

Four, if the key is lost, use bolt cutters — not a master key. When a key goes missing, industry consensus is to cut the lock off with bolt cutters and then fit a new lock. Master keys and spare keys carry an extremely high bar and extremely high risk under OSHA’s position, and the cost of a padlock is always lower than the cost of one accident.

Six Common Mistakes

Walking away before the shackle is fully engaged — the pull-back confirmation prevents this.

Hanging the lock on the wrong isolation point — locking the local button while forgetting the upstream breaker is the classic case of “locked, but not really locked.”

Removing the lock too early — taking it off before the work is finished or before people have cleared the area.

Letting someone else do it — whether applying or removing, having someone stand in for you breaks the foundation of one person, one lock and whoever locks, unlocks.

Substituting a household padlock for a safety padlock — household locks have thin shackles, non-durable bodies, and chaotic key systems, and they do not meet OSHA’s requirements that lockout devices be durable, substantial, identifiable, and standardized.

Skipping the startup verification after removal — removing the lock does not mean you can walk away. After the equipment is restored, confirm startup is normal and free of abnormalities.
