Industrial Safety Lockout Key System: Building a Robust Defense Line of Multi-level Energy Isolation

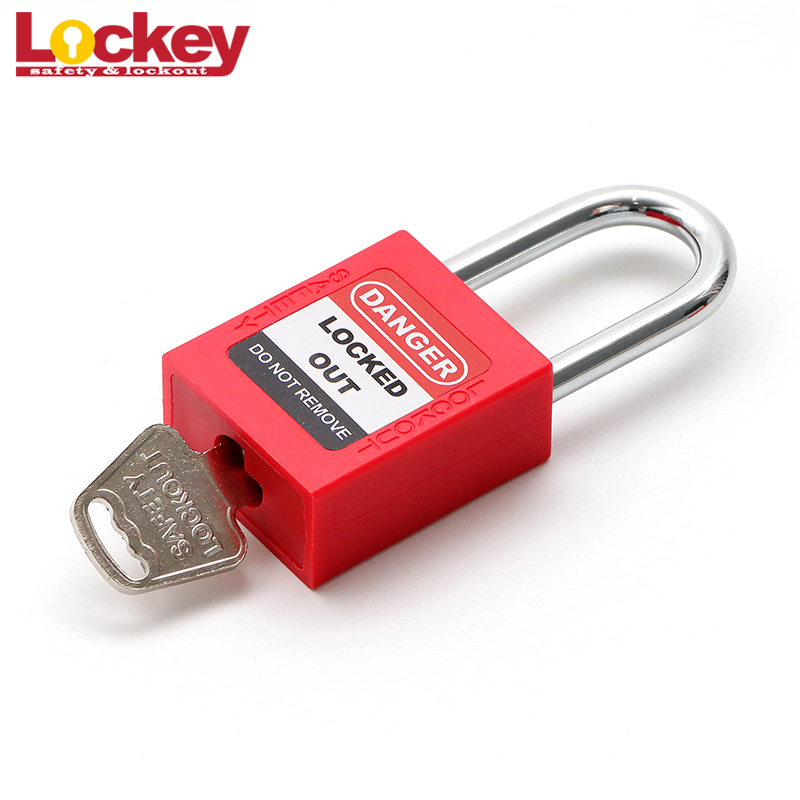

In industrial production environments, every maintenance, inspection, or cleaning of equipment comes with potential energy risks. To ensure the safety of workers, the Lockout-Tagout (LOTO) procedure has become an indispensable lifeline. And the industrial safety lockout key system is the core hardware guarantee for the efficient and precise execution of this procedure. It goes beyond the single function of traditional locks and achieves physical locking and permission control of dangerous energy sources through precise mechanical design and logical management, providing customized safety solutions for complex and variable industrial scenarios.
Precise Permission Logic: Analysis of KA, KD and Multi-level Management System The core of the industrial safety lockout key system lies in its internal key interchangeability and permission management logic. Different system designs aim to meet the diverse needs from single equipment to full-scale factory management. In the industrial safety lockout key system, KA (Key-Aspire) and KD (Key-Dedicated) are not just two different mechanical structures, but rather two completely different safety management philosophies. KA focuses on “collaborative efficiency”, while KD focuses on “independent control”. To help industrial safety managers precisely match the most suitable solution, the following will deeply analyze the applicable scenarios of KA and KD systems in combination with specific working conditions.
1. Same Flower Open Key System (Key-Aspire, KA): The Foundation of Efficient Collaboration
The core feature of the KA system is the “one key opens multiple locks” management model. In this system, the key hole structures of all lockers are consistent, and a universal key can complete the operation of all lockers in a specific area. This design greatly simplifies the daily operation process, especially suitable for scenarios where key management requirements are relatively unified and quick collaborative operations are needed, such as routine maintenance of small production lines or centralized maintenance by specific project teams. It ensures that during specific tasks, all authorized personnel can efficiently access the required equipment, avoiding key distribution problems that cause operation delays.
Applicable Scenario 1: Centralized Maintenance of Small Production Lines On a small packaging line or assembly line, multiple equipment nodes often need to be maintained simultaneously. For example, during the mold changeover period to replace product models, engineers need to lock the energy of the conveyor belt, sealing machine, and labeling machine at the same time. Using the KA system, the team leader can uniformly distribute a set of universal keys to ensure that all relevant personnel can efficiently lock and unlock simultaneously, avoiding key distribution chaos or handover delays, and greatly improving the efficiency of equipment maintenance during downtime.
Applicable Scenario 2: Emergency Response and Fire System In cases of fire or emergency shutdown, time is of the essence. The KA system is often used for the isolation management of emergency stop buttons or fire-fighting equipment. When an emergency occurs, the first step is to try to contact the person who locked it. If the person cannot be reached, security personnel or emergency response teams holding the universal emergency key can quickly remove the locking devices in the area, allowing for precious time for emergency rescue.
Applicable Scenario 3: Short-Term Concentrated Operations by Contractors When a factory invites external contractors to carry out a specialized rectification (such as pipeline cleaning, dust removal system upgrade) for several days, the KA system is highly applicable. The factory can issue a set of dedicated KA locks and universal keys to the contractor team. During the operation, members of the contractor team can flexibly use this universal key to perform Lockout-Tagout; after the operation is completed and is accepted as qualified, the factory can retrieve and invalidate this set of keys, without having to retrieve and invalidate individual keys with different numbers one by one. The management cost is extremely low.
II. Different Key-Dedicated System (Key-Dedicated, KD): The Foundation of Precise Isolation
Compared to the KA system, the core feature of the KD system is “one key for one lock”, that is, one key can only open one designated lock. This “one-to-one” configuration achieves the highest level of independence and security. When it is necessary to conduct long-term, independent maintenance of a single device or a specific energy isolation point, the KD system can ensure that only authorized personnel holding the specific key can unlock, effectively preventing accidental operation or unauthorized intervention. It is often used for deep maintenance of critical equipment, contractor-specific operations, or any scenarios requiring absolute isolation.
Applicable Scenario 1: Deep Maintenance of Key Equipment When the main compressor, large reaction vessels, or core motors in a factory need to undergo a deep overhaul lasting several weeks, the KD system must be used. Due to the long maintenance period and high personnel turnover on-site, if a general key (KA) is used, there is a risk of key duplication, loss, or misuse. However, the uniqueness of the KD system ensures that only the chief maintenance engineer holding the specific equipment key can unlock, effectively preventing other personnel from mistakenly operating the energy switch without knowing, thus avoiding serious safety accidents.
Applicable Scenario 2: Cross-operation by multiple contractors In large petrochemical or shipbuilding factories, etc., there may be multiple contractor teams operating simultaneously within the same area. For instance, Company A is conducting electrical maintenance, while Company B is performing pipeline welding. If the KA system is used, if the key management becomes chaotic, the personnel of Company A might mistakenly open the valves locked by Company B. At this point, the KD system must be adopted. Each contractor uses their own unique lock system, without interfering with each other, ensuring that “whoever locks, unlocks”, physically eliminating the risk of accidental activation by different operation teams.
Applicable Scenario 3: Long-term Locking of Energy Isolation Points For some energy isolation points that are temporarily deactivated or in standby mode (such as standby power switches, standby gas source valves), to prevent accidental activation, the KD system is usually used for long-term locking. Since these locks may remain unused for a long time, the management of the uniqueness of the keys can ensure that the archived keys correspond one-to-one with the specific locks, avoiding the embarrassing situation of “not being able to find the corresponding key” during future activation.
III. Secondary and Tertiary Management Systems: The Central Nervous System of Complex Systems
For large-scale factories with complex structures or facilities consisting of multiple independent production units, simple KA or KD systems are no longer sufficient to meet management requirements. At this point, the value of multi-level management systems becomes evident.
① Secondary Management System: Usually, it is built on the hierarchy of the master key (Master Key) and the change key (Change Key). The master key holds the highest authority and can open all locks within a specific group, while the change key can only open the individual or partial locks corresponding to it. This structure grants the management team the ability to have overall control in emergency situations or during cross-departmental collaboration, while also ensuring the independence and security of the grassroots operations.
② Three-level Management System: Building upon the second-level management system, it is further refined by adding intermediate-level sub-master keys, resulting in a pyramid-like authority structure of “master key – sub-master key – sub-key”. The master key can control all relevant locks in the entire factory, the sub-master keys are responsible for specific areas or workshops, and the sub-keys correspond to specific equipment. This highly refined management approach provides an orderly safety management framework for large-scale, multi-functional industrial complexes, ensuring that every aspect from top-level planning to grassroots execution can precisely match the corresponding security permissions.
IV. Professional Application Guide: Standardized Process from Preparation to Verification
Correct application of the industrial safety lock key system is the key to ensuring the effectiveness of the LOTO procedure. Any oversight at any stage can lead to serious safety incidents. The following is the standardized operation process in accordance with professional LOTO standards.
① Identification and Preparation: Identify Energy Sources and Tools Before starting any operation, a comprehensive assessment of the target equipment must be conducted to identify all potential hazardous energy sources, including electrical, hydraulic, pneumatic, mechanical, thermal, and chemical energy. Based on the identification results, prepare the corresponding types and specifications of industrial safety locks, isolation devices (such as valve locks, circuit breaker locks), and clear warning labels. Ensure that each authorized personnel involved in the operation has their own personal lock and a unique key.
② Shutdown and Isolation: Cut off the energy input. Notify all relevant personnel of the upcoming operation, then follow the standard operating procedures to shut down the equipment. Immediately afterwards, use the isolation devices (such as closing circuit breakers, cutting off valves, disconnecting connections) to completely isolate the equipment from all energy sources. This step is the basis for achieving physical isolation and it is essential to ensure that the isolation devices are in a “safe” position, that is, a state where no energy can be supplied to the equipment.
③Lockout-Tagout: Physical Locking and Information Warning This is the most crucial part of the entire process. Each authorized operator should apply their own personal lock at each energy isolation point to ensure that the isolation device cannot be operated accidentally or without authorization. When multiple people are working collaboratively, lock rings or lock clips should be used, allowing multiple personal locks to be simultaneously locked at the same isolation point, following the principle of “one lock per person”. At the same time, warning labels should be hung on the locks and prominent positions, clearly indicating the name of the operator, the operation content, the start time, and potential hazards, serving as a warning and notification function.
④ Verification and Testing: Confirming the Zero Energy State It is absolutely not permissible to assume that the equipment is already in a safe state. After Lockout-Tagout is completed, verification tests must be conducted to confirm that all energy sources have been effectively isolated and there is no residual energy within the equipment. Specific operations include: attempting to start the equipment (such as pressing the start button), observing whether the equipment responds; manually releasing residual pressure (such as opening the pressure relief valve), observing the pressure gauge return to zero; using tools such as an electric tester to detect whether the circuit is de-energized; manually moving the moving parts to confirm there is no inertia or energy release. Only after confirming that the equipment is completely in the “zero energy state” can work commence.
⑤ Completion of Work and Unlocking: Sequential Restoration After the completion of the work, the workers must clean up the site to ensure that all tools and personnel have evacuated the dangerous area of the equipment. Then, remove their own locks and tags one by one. It is strictly prohibited to remove the locks on behalf of others. After confirming that all locks and tags have been removed, notify the relevant personnel that the work is completed. Only then can the energy supply be restored in accordance with the operating procedures and the equipment be restarted.
