In industrial production sites, the safety protection of electrical equipment maintenance and the maintenance of the power distribution system are the core aspects of enterprise safety production. The LOTO (Lockout/Tagout) system, which involves locking and tagging to block electrical hazardous energy and prevent the misoperation of circuit breakers, is the “key line of defense” for protecting the personal safety of workers and preventing power outages. According to data, more than half of electrical maintenance accidents are related to the absence or improper implementation of the LOTO process. Among them, accidents caused by misoperation of circuit breakers, such as electric shock, equipment short circuits, and even fires, account for a high proportion. The circuit breaker lock, as the core locking device for isolating the electrical energy source in the LOTO process, is directly related to the standard selection and correct application of different types of circuit breakers and is a key content that industrial safety professionals and electrical workers must be familiar with. This article will provide a detailed analysis and introduction of different types of circuit breakers from the perspective of LOTO, as well as the locking schemes, and answer common industry questions to help enterprises standardize the implementation of the LOTO system and strengthen the industrial electrical safety defense line.
Below, I will analyze, introduce, and provide locking schemes for different types of circuit breakers from the LOTO professional perspective.
I. Small Circuit Breakers
Small circuit breakers are the most basic protective electrical appliances in industrial power distribution systems. They are mainly used for overload and short-circuit protection, featuring small size, moderate breaking capacity, and convenient operation. They are the core power distribution components in industrial workshops, distribution boxes, and small equipment. In LOTO operations, small circuit breakers serve as the key node for isolating electrical energy at the front end. If not locked in accordance with regulations, they can easily cause the downstream maintenance equipment to suddenly be energized due to personnel mistakenly closing the circuit breaker, resulting in accidents such as electric shock, equipment damage, etc. Therefore, physical locking must be achieved through special locks to implement the LOTO energy isolation requirements.
Common brands of small circuit breakers:
⑴. Domestic: CHINT, DELIXI, PEOPLE, TENGEN, Nader, etc. ⑵. Foreign: Schneider Electric, ABB, Siemens, Eaton, Legrand, etc.
a. Application scenarios:
⑴. Line protection and energy isolation in small distribution boxes and equipment control boxes in industrial workshops;
⑵. Maintenance of low-voltage power distribution systems in office areas and industrial auxiliary facilities;
⑶. Maintenance of small branch circuits and power supply circuits for precision instruments in automated production lines.
II. Molded Case Circuit Breaker
The molded case circuit breaker has functions of overload, short circuit, and under-voltage protection. It has strong breaking capacity and a wide rated current range. The enclosure is made of plastic insulating material, which can effectively prevent arc exposure. It is the core component of the power distribution system in industry and is widely used for the protection and control of high-power equipment, workshop main power distribution, and power distribution trunk lines.

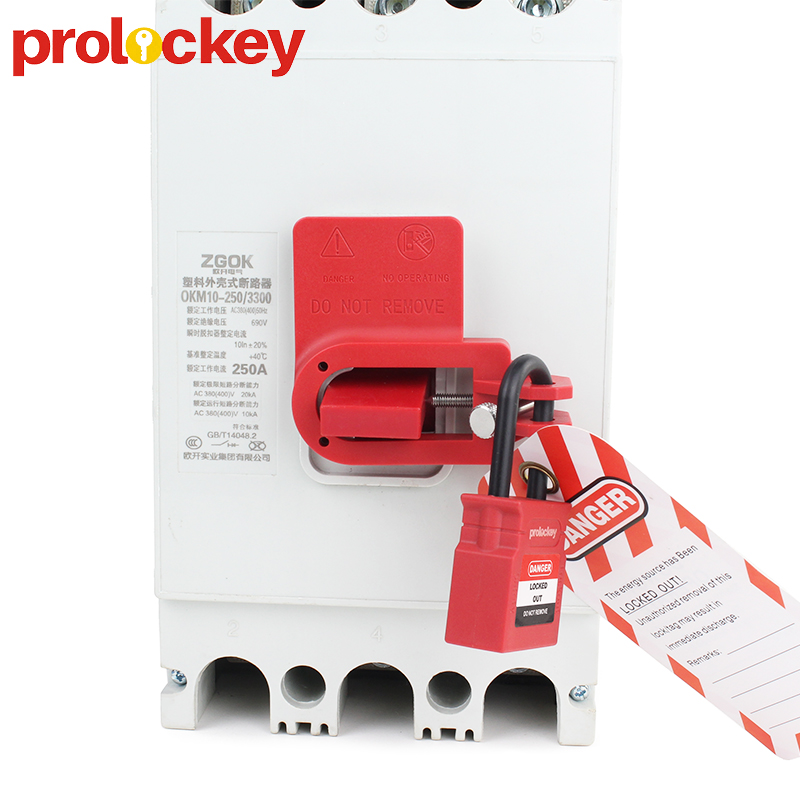

As an important electrical energy isolation point in industrial sites, the molded case circuit breaker connects the power source of high-power equipment. Misoperation of closing the switch will cause a huge release of electrical energy, resulting in serious personal injury and equipment damage. Therefore, during LOTO operations, it is necessary to achieve a secure lock through dedicated heavy-duty locks and combine multiple protections to ensure effective energy isolation.
III. Frame Circuit Breaker
A frame circuit breaker, also known as a universal circuit breaker, features a large rated current, extremely strong interrupting capacity, and comprehensive protection functions. It can be operated both electrically and manually and is mainly used as the main switch in the power distribution system of industrial enterprises. It is the core control and protection component of the entire industrial power distribution network. The frame circuit breaker controls the electrical energy source of the entire workshop or factory area. The LOTO (Lockout-Tagout) operation on the LOTO panel is the top priority for industrial electrical safety. If it is operated incorrectly, it may lead to large-scale power outages, damage to equipment groups, or even major personal safety accidents. Therefore, it is necessary to strictly follow the full process of LOTO and use dedicated high-strength locks to achieve multiple physical isolations, and implement the core principle of “who locks, who unlocks”.
a. Application scenarios
⑴. Main switch for energy isolation in the main distribution room of industrial plants and large industrial parks;
⑵. Power distribution system maintenance in large industrial enterprises such as metallurgy, power, and chemical industries;
⑶. Main distribution control switches for large automated production lines and intelligent factories for LOTO operations.
